Solving Initial Value Problems

An ordinary differential equation specifies a trajectory through its rate of change. An initial value problem (IVP) supplies the state from which that trajectory starts:

Except for special vector fields, the state at a later time is not available in closed form. A numerical integrator advances an approximation from one mesh point to the next. Given $t_n$, an approximate state $\mathbf{x}_n$, and a step $h_n=t_{n+1}-t_n$, one step defines a map

This one-step map is the part of an ODE solver used by shooting methods. The sections below derive five fixed-step maps: forward Euler, backward Euler, the implicit trapezoidal rule, Heun’s predictor-corrector method, and classical fourth-order Runge--Kutta.

The integral identity behind a step¶

Integrating the ODE over one interval gives the exact relation

Every method in this appendix replaces the unknown integral by finitely many evaluations of $\mathbf{f}$. Their locations, weights, and stage equations jointly determine the method’s accuracy, computational cost, and stability.

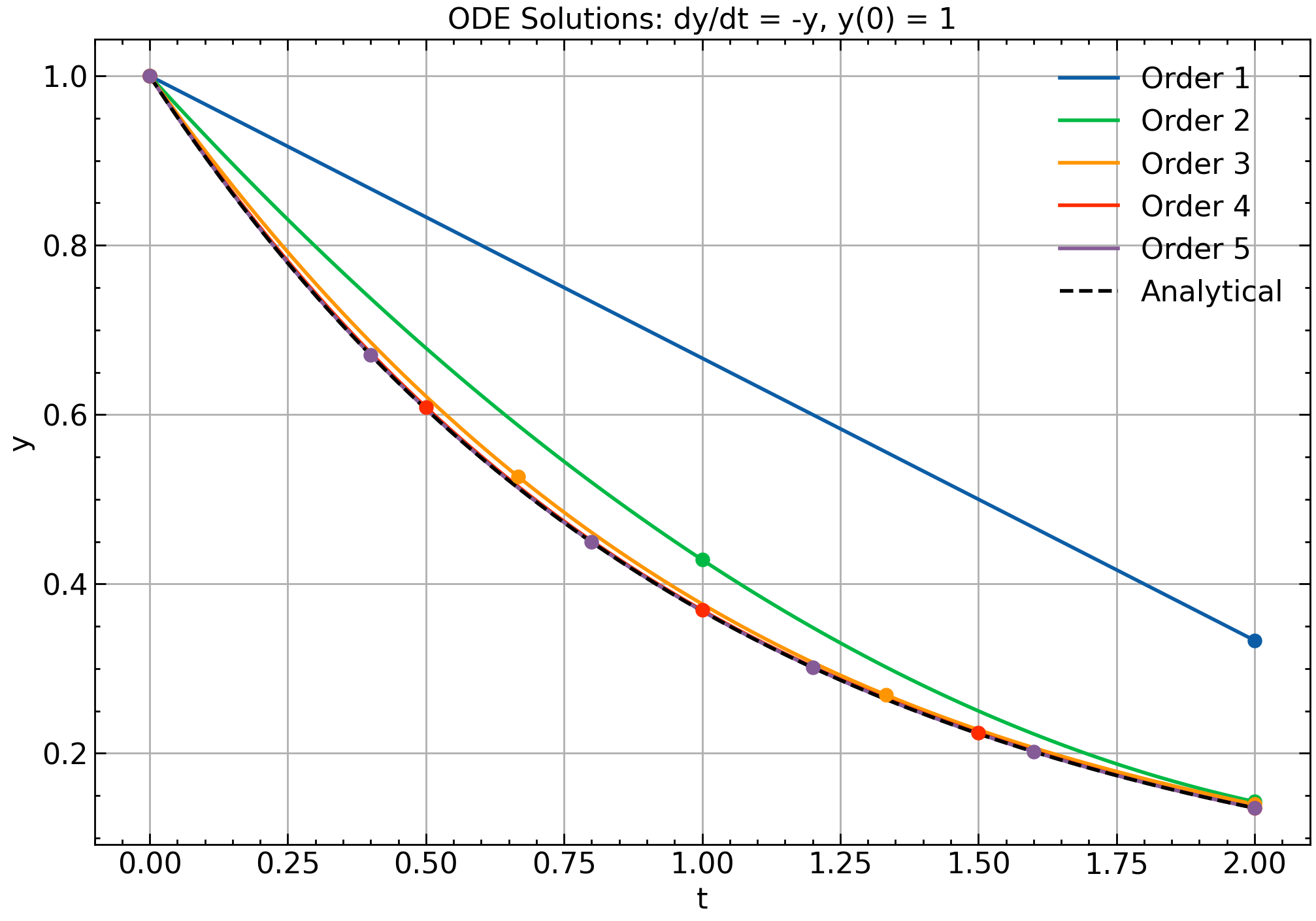

Two error scales are useful. The local truncation error measures the error made by one step that starts from the exact state. The global error measures the accumulated error after advancing across a fixed time interval. A method of order $p$ has global error $O(h^p)$ as a uniform step $h$ tends to zero, provided the solution and vector field are sufficiently smooth.

Forward (explicit) Euler¶

Forward Euler, also called explicit Euler, replaces the vector field throughout the interval by its value at the left endpoint:

The update is explicit because every quantity on the right is known. It uses one vector-field evaluation per step and has first-order global accuracy. The same formula follows from the first-order Taylor expansion of $\mathbf{x}(t_n+h_n)$.

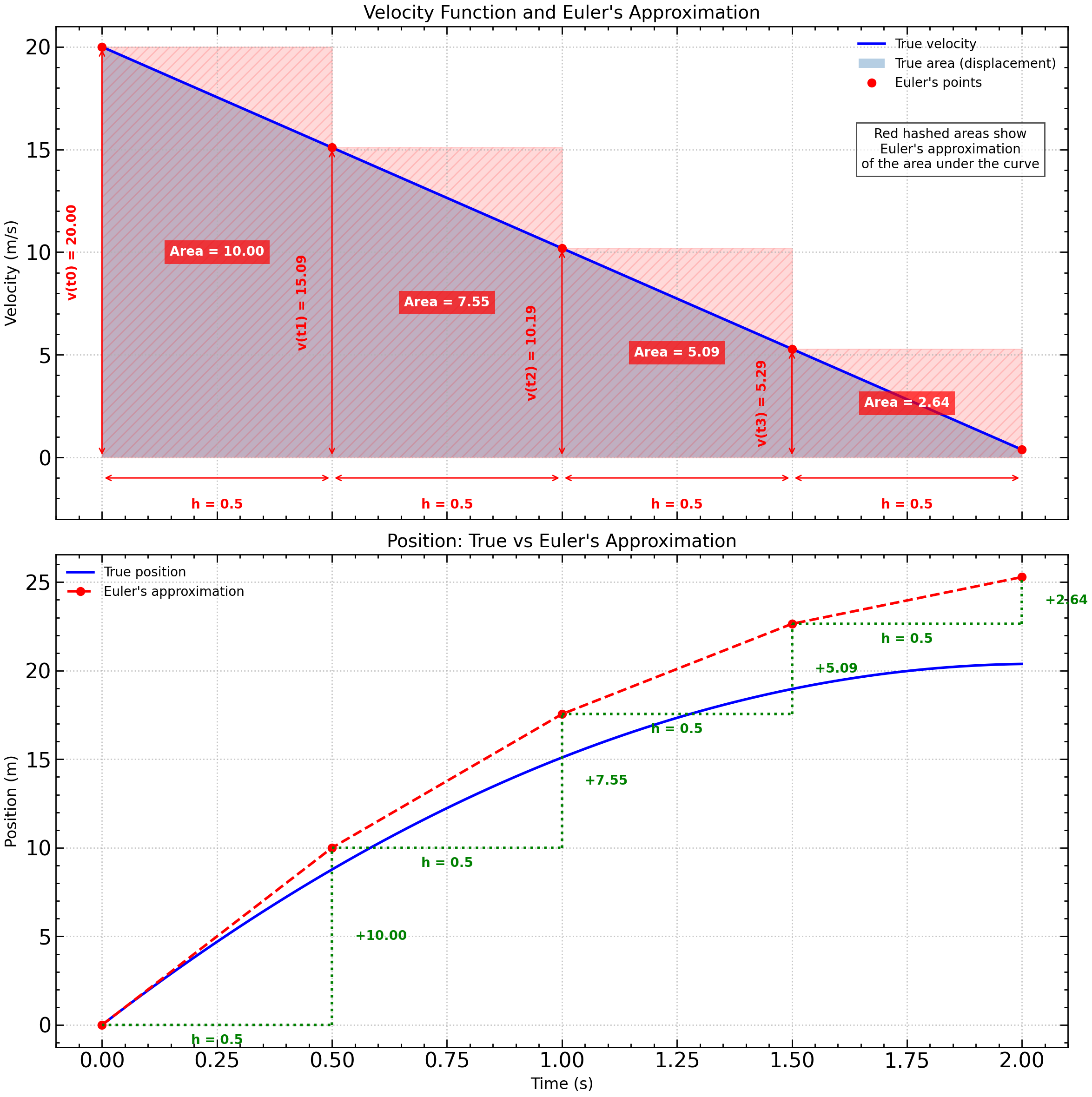

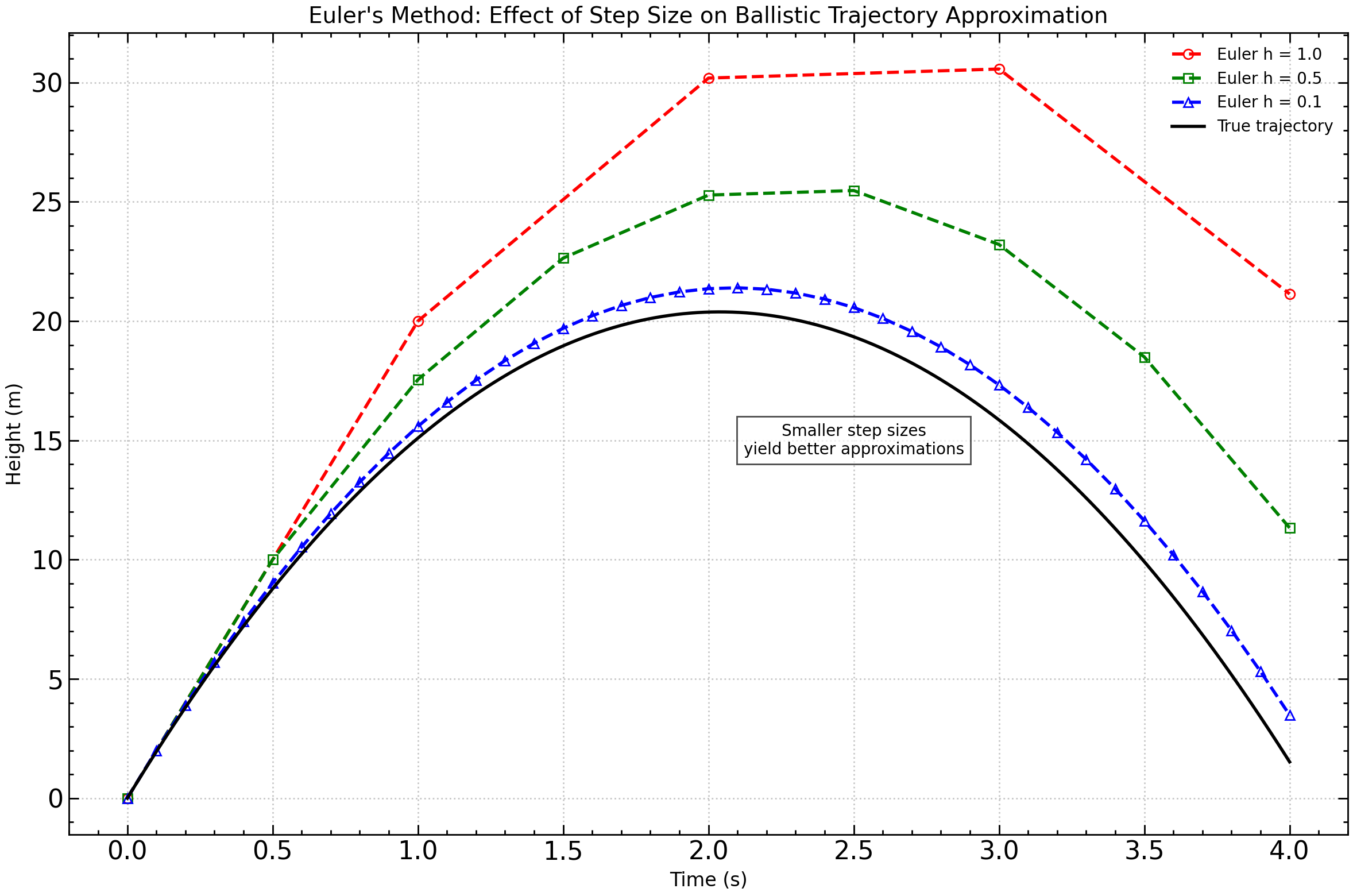

For the ballistic system

forward Euler gives

The velocity update is exact because its derivative is constant. The position update is not exact because the velocity changes during the interval.

Backward (implicit) Euler¶

Backward Euler, also called implicit Euler, evaluates the vector field at the unknown right endpoint:

This equation is implicit. One step requires solving the nonlinear residual

for $\mathbf{z}=\mathbf{x}_{n+1}$. A fixed-point iteration or a root finder such as Newton’s method can perform the internal solve. A failed or loosely converged internal solve changes the effective one-step map, so its residual tolerance is part of the integration accuracy.

Backward Euler has first-order global accuracy. Its main advantage is stability: strongly decaying modes remain stable for step sizes that would make forward Euler diverge.

Implicit trapezoidal rule¶

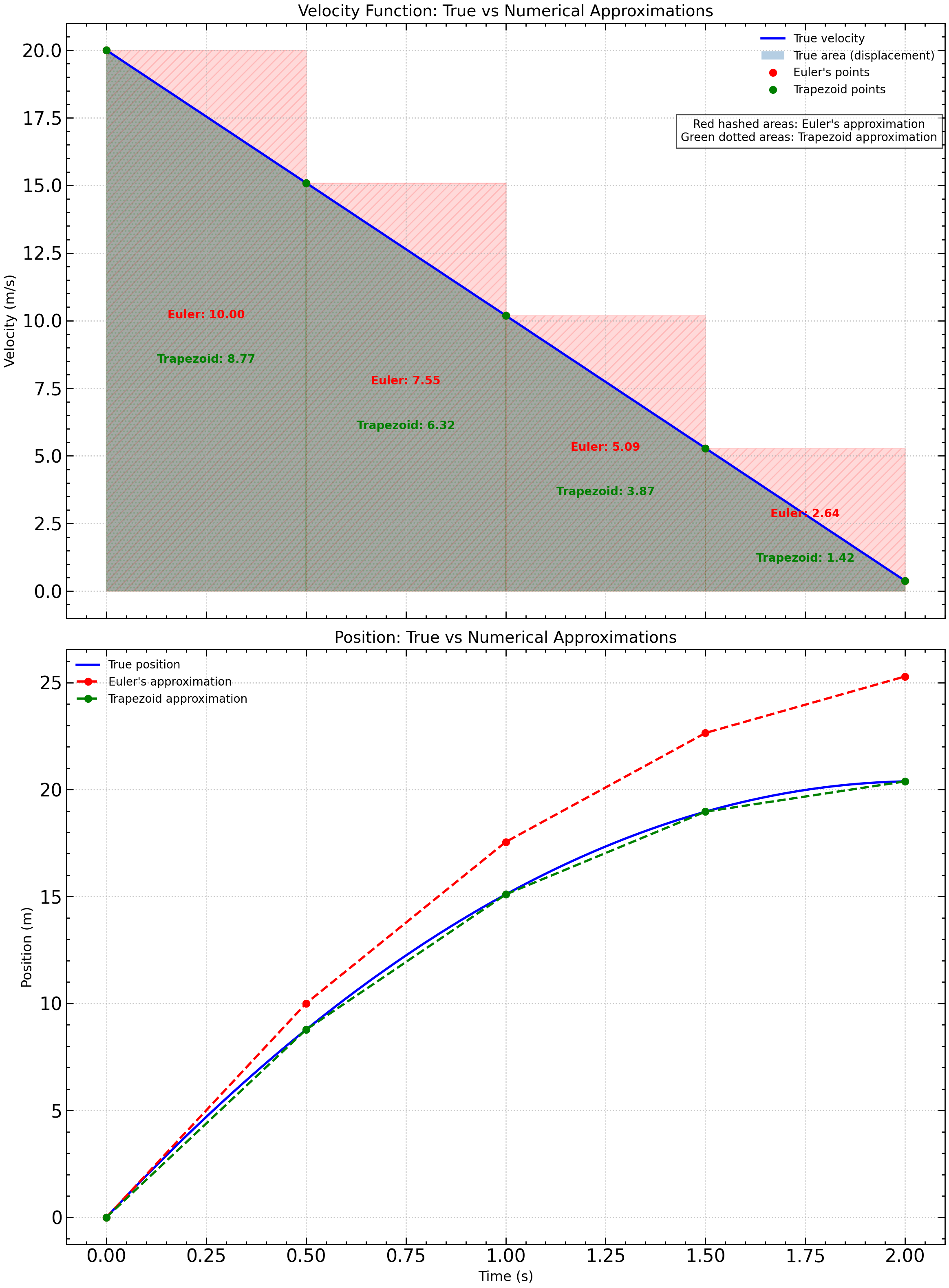

The trapezoidal rule approximates the integral of the vector field by the average of its values at the two endpoints:

The right-endpoint state is unknown, so this rule is also implicit. Its nonlinear residual is

Solving $\mathbf{r}(\mathbf{z})=\mathbf{0}$ to sufficient accuracy produces a second-order method. The implicit trapezoidal rule is time-symmetric and stable throughout the left half of the complex plane. Unlike backward Euler, however, it does not strongly damp extremely fast modes; a large step can make such modes alternate in sign while decaying very slowly.

Predictor-corrector iteration and Heun’s method¶

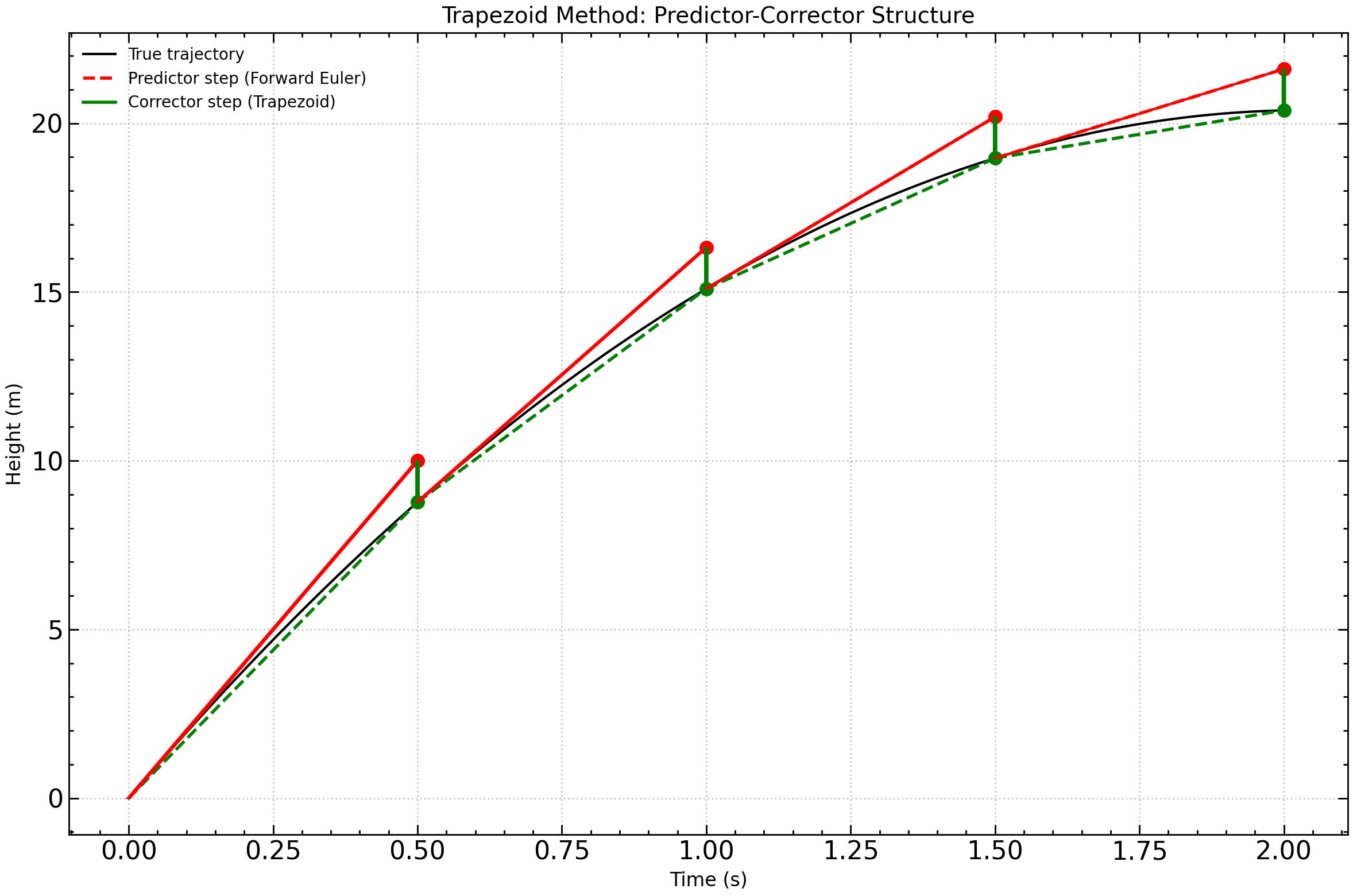

An Euler prediction supplies a convenient initial guess for the implicit trapezoidal equation:

Substituting that prediction into the right-endpoint evaluation gives

Stopping after this correction gives Heun’s method, also called the explicit trapezoidal method. It is an explicit, second-order Runge--Kutta method: the endpoint slope is evaluated at the Euler-predicted state, not at the unknown final state.

Repeating the correction,

is a fixed-point, or Picard, iteration for the implicit trapezoidal equation. If the iteration converges, its limit is the implicit trapezoidal step. It is not a Newton iteration. Newton’s method instead uses the residual Jacobian and updates

The distinction matters when the step is large or the dynamics are stiff. Picard iteration requires its fixed-point map to be contractive, whereas a well-globalized Newton solve can converge in cases where Picard iteration does not.

Classical fourth-order Runge--Kutta¶

Classical RK4 evaluates four slopes. Starting from $(t_n,\mathbf{x}_n)$, define

The step is

RK4 is explicit and has fourth-order global accuracy for smooth problems. The two midpoint evaluations occur at the same time but at different predicted states. They are stages of the Runge--Kutta calculation, not values of one cubic interpolant at four distinct collocation nodes. Classical RK4 is therefore not a collocation method. Some implicit Runge--Kutta methods are obtained from Gauss, Radau, or Lobatto collocation, but that correspondence does not include classical RK4.

A compact fixed-step implementation¶

The implementations below expose the one-step maps directly. The implicit methods use a generic nonlinear root solver initialized by a forward Euler prediction.

import numpy as np
from scipy.optimize import root


def forward_euler_step(fun, t, x, h):
    x = np.asarray(x, dtype=float)
    return x + h * fun(t, x)


def backward_euler_step(fun, t, x, h):
    x = np.asarray(x, dtype=float)
    guess = forward_euler_step(fun, t, x, h)
    residual = lambda z: z - x - h * fun(t + h, z)
    solution = root(residual, guess)
    residual_norm = np.linalg.norm(residual(solution.x), ord=np.inf)
    tolerance = 1e-10 * (1 + np.linalg.norm(x, ord=np.inf))
    if residual_norm > tolerance:
        raise RuntimeError(
            f"backward Euler residual {residual_norm:.3e}: {solution.message}"
        )
    return solution.x


def implicit_trapezoid_step(fun, t, x, h):
    x = np.asarray(x, dtype=float)
    slope_left = fun(t, x)
    guess = x + h * slope_left
    residual = lambda z: z - x - 0.5 * h * (slope_left + fun(t + h, z))
    solution = root(residual, guess)
    residual_norm = np.linalg.norm(residual(solution.x), ord=np.inf)
    tolerance = 1e-10 * (1 + np.linalg.norm(x, ord=np.inf))
    if residual_norm > tolerance:
        raise RuntimeError(
            f"trapezoidal residual {residual_norm:.3e}: {solution.message}"
        )
    return solution.x


def heun_step(fun, t, x, h):
    x = np.asarray(x, dtype=float)
    slope_left = fun(t, x)
    prediction = x + h * slope_left
    return x + 0.5 * h * (slope_left + fun(t + h, prediction))


def rk4_step(fun, t, x, h):
    x = np.asarray(x, dtype=float)
    k1 = fun(t, x)
    k2 = fun(t + 0.5 * h, x + 0.5 * h * k1)
    k3 = fun(t + 0.5 * h, x + 0.5 * h * k2)
    k4 = fun(t + h, x + h * k3)
    return x + (h / 6.0) * (k1 + 2 * k2 + 2 * k3 + k4)


def integrate_fixed_step(step, fun, x0, t0, tf, h):
    n_steps = int(np.ceil((tf - t0) / h))
    times = np.linspace(t0, tf, n_steps + 1)
    states = np.empty((n_steps + 1, np.size(x0)), dtype=float)
    states[0] = np.asarray(x0, dtype=float)
    for n in range(n_steps):
        step_size = times[n + 1] - times[n]
        states[n + 1] = step(fun, times[n], states[n], step_size)
    return times, states


decay = lambda t, x: -2.0 * x
exact_terminal = np.exp(-6.0)
methods = {
    "forward Euler": forward_euler_step,
    "backward Euler": backward_euler_step,
    "implicit trapezoid": implicit_trapezoid_step,
    "Heun": heun_step,
    "classical RK4": rk4_step,
}

for name, step in methods.items():
    _, states = integrate_fixed_step(step, decay, [1.0], 0.0, 3.0, 0.25)
    error = abs(states[-1, 0] - exact_terminal)
    print(f"{name:20s} terminal error: {error:.3e}")

forward Euler        terminal error: 2.235e-03
backward Euler       terminal error: 5.229e-03
implicit trapezoid   terminal error: 3.020e-04
Heun                 terminal error: 1.074e-03
classical RK4        terminal error: 1.180e-05

Stability and stiffness¶

Accuracy describes how the error shrinks as $h$ tends to zero. Stability asks whether repeated numerical steps preserve the qualitative decay of the ODE at the chosen step size. A high-order method can still be unstable when its step is too large.

The scalar test equation

has a decaying exact solution. Applying a one-step method gives $x_{n+1}=R(z)x_n$ with $z=h\lambda$. The numerical solution does not grow where $|R(z)|\leq 1$ and decays strictly where $|R(z)|<1$. The five methods have the following stability functions:

For real $\lambda<0$, forward Euler requires $0<h<2/|\lambda|$. Backward Euler and the implicit trapezoidal rule are A-stable: their stability regions contain the entire left half-plane. Backward Euler is also L-stable, since $R(z)\to 0$ as $z\to-\infty$. The trapezoidal rule instead has $R(z)\to-1$, so it can preserve a weak step-to-step oscillation in modes that the exact solution damps almost immediately. Heun and RK4 can give higher accuracy per step than forward Euler on smooth nonstiff problems, but both remain explicit methods with bounded stability regions.

An IVP is stiff when rapidly decaying modes force an explicit method to take steps much shorter than the time scale on which the desired solution changes. Implicit methods cost more per step because they solve nonlinear equations, but their stability can make much larger steps possible. Stability does not remove the need for accuracy checks: a stable coarse solution can still be inaccurate.

The one-step map in shooting methods¶

A controlled system adds a prescribed input over each integration interval:

For example, under a zero-order hold every stage used to advance across $[t_n,t_{n+1}]$ receives the same value $\mathbf{u}_n$. Applying any integrator above then defines

In single shooting, the optimizer selects the control parameters and every state follows by repeatedly applying $\Phi$. The states are intermediate values of the computation rather than independent optimization variables.

In multiple shooting, the initial state of each segment is an optimization variable. Integration produces a predicted terminal state $\widehat{\mathbf{s}}_{k+1}$ for segment $k$, and the nonlinear program imposes the continuity defect

The integrator is therefore part of the model seen by the optimizer. Its step size, control interpolation, nonlinear-solve tolerance, and differentiability all affect the resulting objective and constraints. After optimization, a tighter integration tolerance or a refined step should replay the fixed control trajectory. A large discrepancy between the optimization rollout and this validation rollout indicates that the integration mesh was inadequate.

From shooting to collocation¶

Shooting advances a state sequentially through a one-step or segment map. Trajectory Optimization in Continuous Time develops the simultaneous alternative: state values across an interval become optimization variables, a polynomial interpolates those values, and the ODE is imposed at selected nodes. That chapter treats polynomial representations, differentiation matrices, quadrature, and direct collocation. Keeping those ideas there avoids a second, competing derivation in this IVP appendix.

Summary¶

Forward Euler, Heun, and classical RK4 are explicit one-step methods of orders one, two, and four. Backward Euler and the implicit trapezoidal rule require an internal nonlinear solve; they have orders one and two and are stable throughout the left half-plane. One Euler prediction followed by one trapezoidal correction is Heun’s explicit method. Repeated corrections form Picard iteration for the implicit trapezoidal equation, while Newton’s method uses the residual Jacobian.

For shooting, any of these methods becomes a finite transition map $\Phi_h$. Single shooting chains the map from one initial state; multiple shooting chains shorter integrations and constrains their endpoints to agree. Direct collocation replaces that sequential construction by simultaneous nodal variables and algebraic ODE constraints.
